Broadband Technical Help

TIME - Tplink Router

TIME - Tplink Router

TIME - Tplink Router

You may proceed with  the following troubleshooting steps and it shouldn’t take you much longer  than 15 min

1. Please standby a computer/laptop to  access to the internet and connection must be via LAN cable (connect the LAN  cable to the Yellow port at Tplink Router and direct to the computer/laptop).

2. You may open any web browser such as  Google Chrome, Internet Explorer, Mozilla Firefox and etc.

3. On the address bar, please go to tplinkwifi.net and to access to below login page. Type the Username and  Password, then click "Login".

‍

The default login of the router is  available on the sticker at the back of the router. If you have done a configuration on your  router previously, the password may be different.

For example, below is the login details of the above router:

Username: admin

Password: TIMECE24

4. Once you have  successfully login, the router's web-based setup page will appear. Please  follow below steps for the configuration.

‍

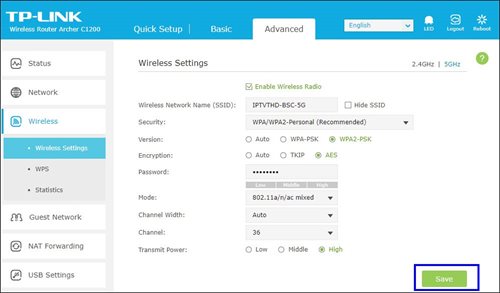

5. From the top menu,  choose Advanced and click the Wireless tab on the left menu. Then, select Wireless Settings from the sub menu. Below screen will appear for 2.4GHz selection.

i. Please ensure to tick Enable Wireless Radio function.

ii. To change the channel, click the  drop-down arrow for Channel,  then select your desired channel.

Choose between 1 to 13 (Suggested  channels : 1,6,11). Then, click "Save" for the changes to take  place.

iii. Click Save for the changes to take place. The router will auto reboot and  connection will re-establish after few minutes.

iv. Next, select 5GHz to make changes on the wireless channel for 5GHz.

v. Click the drop-down arrow for Channel, then select your desired  channel from the selection.

vi. Click Save for the changes to take place. The router will auto reboot and  connection will re-establish after few minutes.

‍

‍

‍

‍

"Anda boleh meneruskan penyelesaian masalah di bawah dan anda tidak sepatutnya mengambil masa lebih daripada 15 minit.

1. Sila sediakan komputer/komputer riba untuk mengakses internet dan sambungan mestilah melalui LAN (kabel) [Sambungkan LAN (kabel) ke port kuning di Router ZTE dan terus ke komputer/komputer riba].

2. Anda boleh membuka mana-mana pelayar sesawang seperti Google Chrome, Internet Explorer, Mozilla Firefox dan lain-lain.

3. Pada bar alamat, taipkan http://192.168.0.1 dan halaman di bawah akan muncul.

‍

‍

4. Taipkan nama pengguna (username) dan Kata laluan (password) seperti di bawah. Kemudian klik Log Masuk. (Secara umumnya, jika anda telah melakukan konfigurasi sebelumnya pada router anda, Kata laluan (password) mungkin berbeza)

nama pengguna (username): admin

Kata laluan (password): admin (atau time123)

‍

‍

5. Daripada menu atas, pilih Lanjutan dan klik tab Wayarles pada menu kiri. Kemudian, pilih Tetapan Wayarles daripada sub menu. Skrin di bawah akan muncul untuk pemilihan 2.4GHz.

i. Sila pastikan untuk menandakan Dayakan fungsi Radio Wayarles (Enable Wireless Radio function).

ii. Untuk menukar saluran, klik pada anak panah lungsur untuk Saluran, kemudian pilih saluran yang anda inginkan.

Pilih antara 1 hingga 13 (Saluran yang dicadangkan : 1,6,11). Kemudian, tekan ""Simpan"" untuk perubahan berlaku.

iii. Tekan Simpan untuk perubahan berlaku. Router akan dihidupkan semula secara automatik dan sambungan akan tersedia semula selepas beberapa minit.

iv. Next, select 5GHz to make changes on the wireless channel for 5GHz.

v. Klik pada anak panah lungsur turun untuk Saluran, kemudian pilih saluran yang anda inginkan daripada pilihan

vi. Klik Simpan untuk perubahan berlaku. Router akan dihidupkan semula secara automatik dan sambungan akan tersedia semula selepas beberapa minit.

‍

‍

‍

‍
